Asbestos Free(AF) Performance Packings - STYLE - 2
FDA confirming food grade ePTFE packing for cleanliness

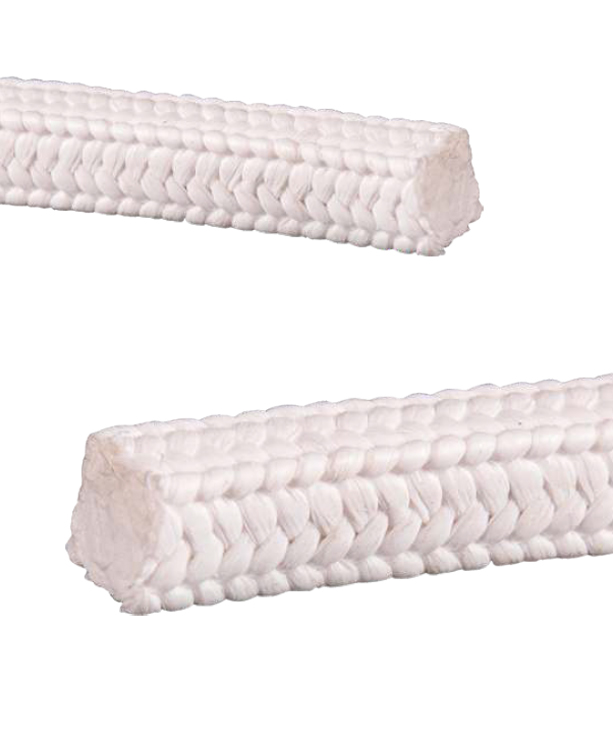

CHAMPION NEOFLON ™ Style 2 Packing is a high-purity white packing, cross-plaited from tough thermally stable PTFE fibre yarn. This yarn is impregnated with densified particles of PTFE to generate extra lubrication. The packing is then cleansed of all organic matter and volatile content.
- High purity, with excellent chemical resistance.
- Clean and highly conformable for easy fitting.
- Non-toxic and inert to protect the purity and safety of fluid media.
- PTFE dispersion acts as a blocking agent and antifriction additive.
CHAMPION NEOFLON ™ Style 2 Packing is used for exceptional corrosion resistance in valves, rotary and reciprocating equipments and in applications where the low friction characteristics of pure PTFE are required.
Compatible with media in the range pH 0-14, including corrosive acids and alkalis but excluding molten alkali metals, fluorine compounds and aqua regia. Can be used in corrosive gases, acids and alkalies, ammonia, solvents, hydrocarbons, food stuff and pharmaceutical.
All popular sections from 3mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms. Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 3 | 1/8 | 60.06 | 10.00 | 0.17 (0.37) |
| 4 | 5/32 | 29.76 | 10.00 | 0.34 (0.75) |
| 5 | 3/16 | 22.22 | 10.00 | 0.45 (1) |
| 6 | 1/4 | 16.34 | 16.34 | 1 (2.2) |
| 8 | 5/16 | 9.19 | 9.19 | 1 (2.2) |
| 10 | 3/8 | 6.25 | 6.25 | 1 (2.2) |
| 12.5 | 1/2 | 4.27 | 4.27 | 1 (2.2) |
| 14 | 9/16 | 3.40 | 3.40 | 1 (2.2) |
| 16 | 5/8 | 2.69 | 2.69 | 1 (2.2) |
| 19 | 3/4 | 1.91 | 4.78 | 2.5 (5.5) |
| 22 | 7/8 | 1.42 | 3.56 | 2.5 (5.5) |
| 25 | 1 | 1.10 | 2.76 | 2.5 (5.5) |
Champion Neoflon TM
Style 2
