Environment Friendly Sealing and
Heat Insulation Solutions

GRAPHITE SOLUTIONS Champion GRAPHITE Tapes

Profile

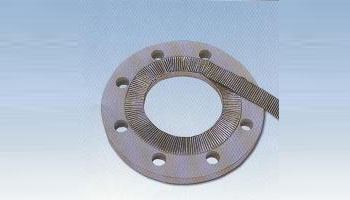

CHAMPION GrafSeal Ribbon Tape is a corrugated Tape manufactured from Flexible Pure Graphite Foil. GrafSeal Tape is designed for use as gland packing for valves as well as pumps. Gland packing can be made at site itself by wrapping corrugated CHAMPION GrafSeal Tape around the spindles / steam and pressing it by gland follower. An endless seal ring is formed directly around the shaft. The parent equipment need not be dismantled to provide a positive seal. However, although a free handy solution at plant site, it can be used in emergency when preformed gland packing’s are not available.

CHAMPION GrafSeal Tape is also available without corrugation which can be used as thread sealant tape for high temperature threaded pipes, nuts and bolts.

Service Media:

Super heated / Saturated steam, Oxidizing fluids and gases, Hydro carbons, Dyes & Chemicals etc.

Service Conditions

Description Industrial grade
Temperature + 600 oC
Pressure 300 KG/CM 2
pH Range 0 to 14

Dimension :

Description Value
Thickness 0.5mm
Standard Width 6mm – 50mm
Standard Length 10mtrs. roll
