Asbestos Free(AF) Performance Packings - STYLE - 68CC
Improved sealing properties and reliabilityat elevated temperatures and pressures

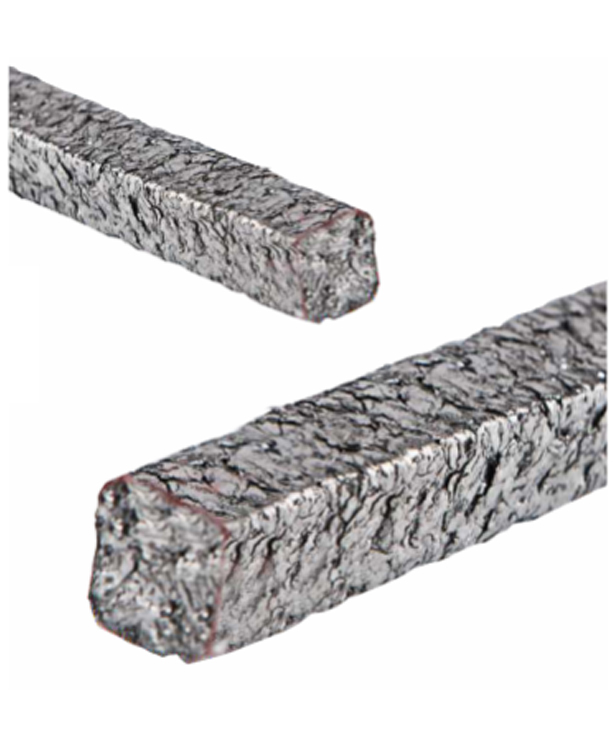

CHAMPION Style 68 CC Graphite Carbon Packing is a Expanded Pure Graphite Braided is a specially developed packing that combines the advantages of soft expanded high purity 99% graphite yarn with the toughness of carbon fibre yarn at its four corners. This packing is fully treated with an inorganic passive corrosion inhibitor.
- Recommended for applications at high working temperatures with corrosive media.
- Very Good resistance to abrasion and wear at high pressures.
- Excellent dry-running capabilities that reduce the need for continuous water flushing.
- Corrosion inhibitor safeguards metallic interfaces from galvanic corrosion.
- High resistance to extrusions.
CHAMPION Style 68 CC Graphite Carbon Packing can be used in both dynamic and static applications for pumps, valves, autoclaves, converters, mixers and reactors. Preferred for high performance applications in power stations, refineries, chemical processing plants, paper mills.
Chemical compatible with media in the range pH 0-14, excluding strong oxidising agents.
Suitable for duties with steam, acids and alkalis, hydrocarbons, fuel and lubricating oils, FCC catalyst and bottom slurry, hydrogen sulphide, sulphur dioxide, thermic fluid, and abrasive media such as ash slurry, fly ash water and sea water.
All popular sections from 6mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms.
Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 6 | 1/4 | 19.84 | 19.84 | 1 (2.2) |
| 8 | 5/16 | 12.50 | 12.50 | 1 (2.2) |
| 10 | 3/8 | 8.00 | 8.00 | 1 (2.2) |
| 12.5 | 1/2 | 5.57 | 5.57 | 1 (2.2) |
| 14 | 9/16 | 4.44 | 4.44 | 1 (2.2) |
| 16 | 5/8 | 3.72 | 3.72 | 1 (2.2) |
| 19 | 3/4 | 2.64 | 6.60 | 2.5 (5.5) |
| 22 | 7/8 | 2.07 | 5.17 | 2.5 (5.5) |
| 25 | 1 | 1.60 | 4.00 | 2.5 (5.5) |
Champion
Style 68CC
