Asbestos Free(AF) Performance Packings - STYLE - 668 (N/M)
High quality carbon yarn for stuffing box with corrosion inhibitor

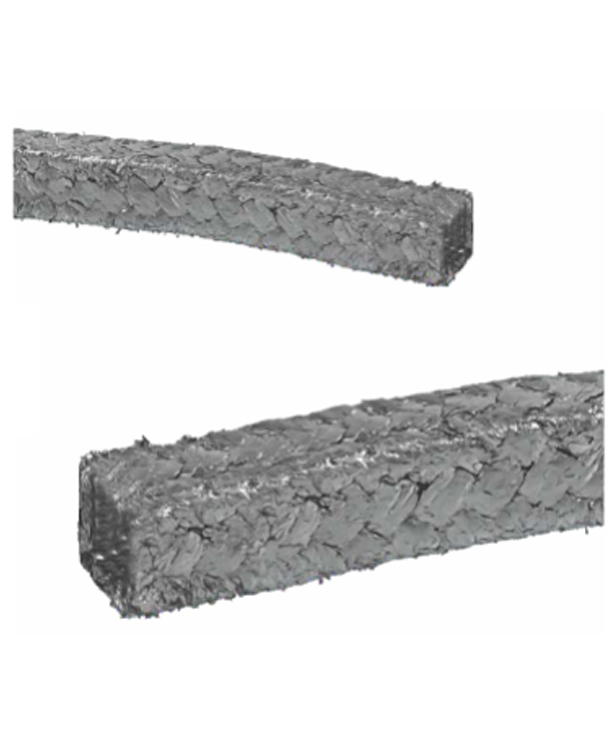

Champion Style 668 Non Metallic Pure Graphite Packing is manufactured from high purity flexible graphite that is expanded and formed into a yarn and then braided without binders or wire reinforcement. It is treated with corrosion inhibitor.
The finished product retains all the inherent benefits of flexible graphite:
- Proper dissipation of heat due to good thermal conductance.
- High Chemical Resistance.
- Low co-efficient of friction.
- Self lubrication and non Abrasive.
- Corrosion inhibitor safeguards metallic interfaces from galvanic corrosion.
Champion Style 668 NM-Pure Gland Packing has outstanding properties at high temperature, high pressure making it a truly multi-service packing in valves, pumps, expansion joints, mixers and agitators in the environments of hydrocarbon processing, pulp and paper, power generation, metal-working, steel mills and other industries.
Water, Superheated and saturated steam, oils, organic solvents, hydrocarbons, chemical products, petrochemicals, thermic fluids, corrosive fluids (other than oxidizing acids) and low temperature fluids. Recommended for continuous pressures only.
All popular sections from 3mm to 25mm in boxes containing length of 10M/25M/50M or in coil form by meter or 1/2.5 kilograms. Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 3 | 3/32 | 74.07 | 10.00 | 0.14 (0.30) |
| 4 | 1/8 | 41.67 | 10.00 | 0.24 (0.52) |
| 5 | 3/16 | 26.67 | 10.00 | 0.38 (0.83) |
| 6 | 1/4 | 19.84 | 19.84 | 1 (2.2) |
| 8 | 5/16 | 12.50 | 12.50 | 1 (2.2) |
| 10 | 3/8 | 8.00 | 8.00 | 1 (2.2) |
| 12.5 | 1/2 | 5.57 | 5.57 | 1 (2.2) |
| 14 | 9/16 | 4.44 | 4.44 | 1 (2.2) |
| 16 | 5/8 | 3.72 | 3.72 | 1 (2.2) |
| 19 | 3/4 | 2.64 | 6.60 | 2.5 (5.5) |
| 22 | 7/8 | 2.07 | 5.17 | 2.5 (5.5) |
| 25 | 1 | 1.60 | 4.00 | 2.5 (5.5) |
Champion GraphiteTM
Style 668 (N/M)
