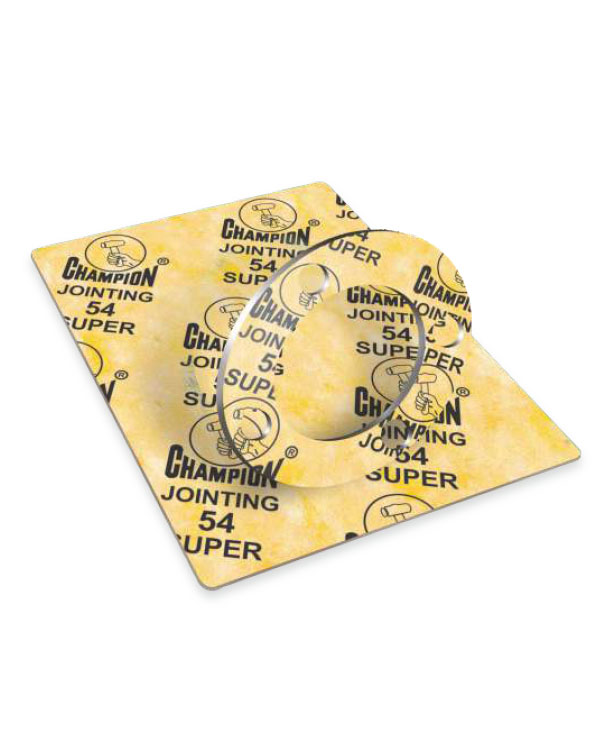

COMPRESSED ASBESTOS FIBRE JOINTING SHEETS & GASKETS - CHAMPION Style 54 Super
Premium grade fibre with heat resisting fillers and binders
Champion Style 54 Super Gasket is a premium grade high temperature, pressure resistance compressed fiber jointing sheet manufactured with a proprietary formulation of premium quality raw materials.
Champion Style 54 Super Gasket is available in non-metallic and also in metallic option i.e with steel wire reinforced gauze insertion (min 18 mesh x 30 gauge) and supplied with smooth anti stick Graphite finish on the top. This grade is produced in yellow (non metallic) and graphited black color.
Champion Style 54 Super Gasket has can be used as high performance jointing sheet primarily a super heated steam gasket.
Preferred as gasket of industry choice for boiler applications, air separation units, petroleum distillates, oil refineries, diesels generators, marine engines etc.
Super heated steam, vaccum, hydrocarbons, gases, solvents, alcohols, dyes etc.
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
| Available Sheet Sizes in mm (+/- 5%) | 1600 mm x 4000 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 2000 mm | |
| 2000 mm X 6000 mm | |
| Thickness (mm) | 0.5 mm; 0.75 mm; 1.0 mm; |
| 1.5 mm; 2.0 mm; 3.0 mm; | |
| 4.0 mm**; 5.0 mm** |
| Description | Standard Specs | Typical Values |
|---|---|---|
| Density | DIN 28090-2 | 2.0-2.2 g/cm2 |
| Tensile Strength | IS 2712:1998 | ≥28 MPa / 280 Bar (4061 psi) |
| Compressibility | ASTM F 36 | 7% to 11% |
| Stress Relaxation | @40 MPa16 hr/300°C-IS 6210 | ≥28 MPa / 280 Bar (4061 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥50% |
| Ignition Loss | DIN 52911 | ≤25% |
Champion Gasket
Style 54 Super
