Environment Friendly Sealing and
Heat Insulation Solutions

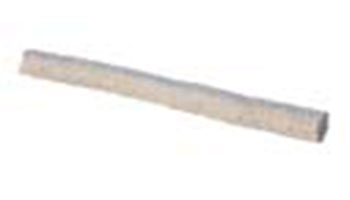

Asbestos Free(AF) Performance Packings - STYLE - 3094

PTFE Impregnated Non Asbestos Packing

This is a Non Asbestos Duplex Braided Gland Packing manufactured from High Purity Heat and Chemical Resistant Inorganic Refractory Oxides in Fibrous Form Impregnated with PTFE dispersion. This packing is recommended only for Static working conditions. It is an excellent packing for handling a wide range of acidic as well as alkaline chemicals. CHAMPION Style 3094 is a Non-Toxic, Non-Health Hazardous and Eco friendly packing having high Cross Sectional stability. This packing can effectively be used for Corrosive and Non Corrosive Gases also.

Service Recommendations :
Acids & Alkalis, Corrosive and Non Corrosive Chemicals, Solvent, Oil, Petroleum Distillates, Corrosive and Non Corrosive Gases etc.

Typical Physical Properties

PH Temperature Size
3-12 0C Bar Bar m/s Bar m/s mm2
-500 to +2800 100 20 5 30 3 3-100
