Environment Friendly Sealing and
Heat Insulation Solutions

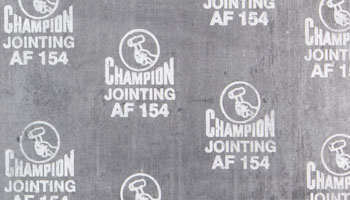

Asbestos Free(AF) Fibre Jointing Sheets - AF 154 Mettalic -Wire Reinforced

Product Profile

A superior performance compressed jointing sheet incorporating a blend of special heat resisting Aramid fibres with a high quality nitrile elastomer binder.

Service Conditions

Suitable for use with Oils, Solvents, Gases, Steam, Dilute Acids and alkalies. (High Service Conditions).

Typical Physical Properties

Density - 2g/cm3
Tensile Strength ASTM F 152 15 - 17 Mpa
Compressibility ASTM F 36 7-11%
Residual Stress BS 7531 25 Mpa
Gas Permeability BS 7531 <0.1 cc/Min
Recovery ASTM F 36 ≥55%
Water Absorpation BS 7531 ≤5%
Ignition Loss - ≤35%

Fluid Resistance

ASTM Oil NO.3 Fuel B
Thickness Increase % Mass Increase %
≤8 ≤8
Thickness Increase % Mass Increase %
≤8 ≤8
Special density, thickness, shape or grade available on request.
